Pinarello Grevil F Ekar
Pinarello Grevil F Ekar
Regular price
€6.299,00 EUR
Regular price
€6.299,00 EUR
Sale price
€6.299,00 EUR
Unit price
/
per
Full Gas Everywhere. The Grevil F is probably the most aerodynamic Gravilbike in the world - many shapes are reminiscent of the dogma, the complete internal routing of the cables has been taken over completely. Nevertheless, it offers a lot of space for wide tires, 28 or 27.5".
FRAME SET
FRAME
TorayCa T700 UD, TiCR™ cable routing, Italian BB
FORK
grevil onda fork with forkflap™, tapered head tube
DRIVE TRAIN
CRANKSET AND CHAINRINGS
Campagnolo Ekar 13s 1X
REAR DERAILLEUR
Campagnolo Ekar 13S
CASSETTE
Campagnolo Ekar 13S
CHAIN
Campagnolo Ekar C13 C-link 13s
BOTTOM BRACKET
Campagnolo Ekar 13S
BRAKES
FRONT BRAKE DISC
Campagnolo Ekar Ergopower 2 pistons, 160mm rotor
REAR BRAKE DISC
Campagnolo Ekar Ergopower 2 pistons, 160mm rotor
COCKPIT
HANDLEABLE
Jaguar GR Di2
STEM
Tiger Aero Alu TiCR
BAR TAPE
MOST Ultragrip Evo 3mm - Black
SADDLE
Most Lynx Aircross FEC Alloy Large 145mm
SEATPOST
Pinarello Aero seat post
WHEELS AND TIRES
WHEELSET DISC
Fulcrum Rapid Red 500
AXLES DISC
MOST Ultralight Custom Axle 12x100 & 12x142, Tool-free removal

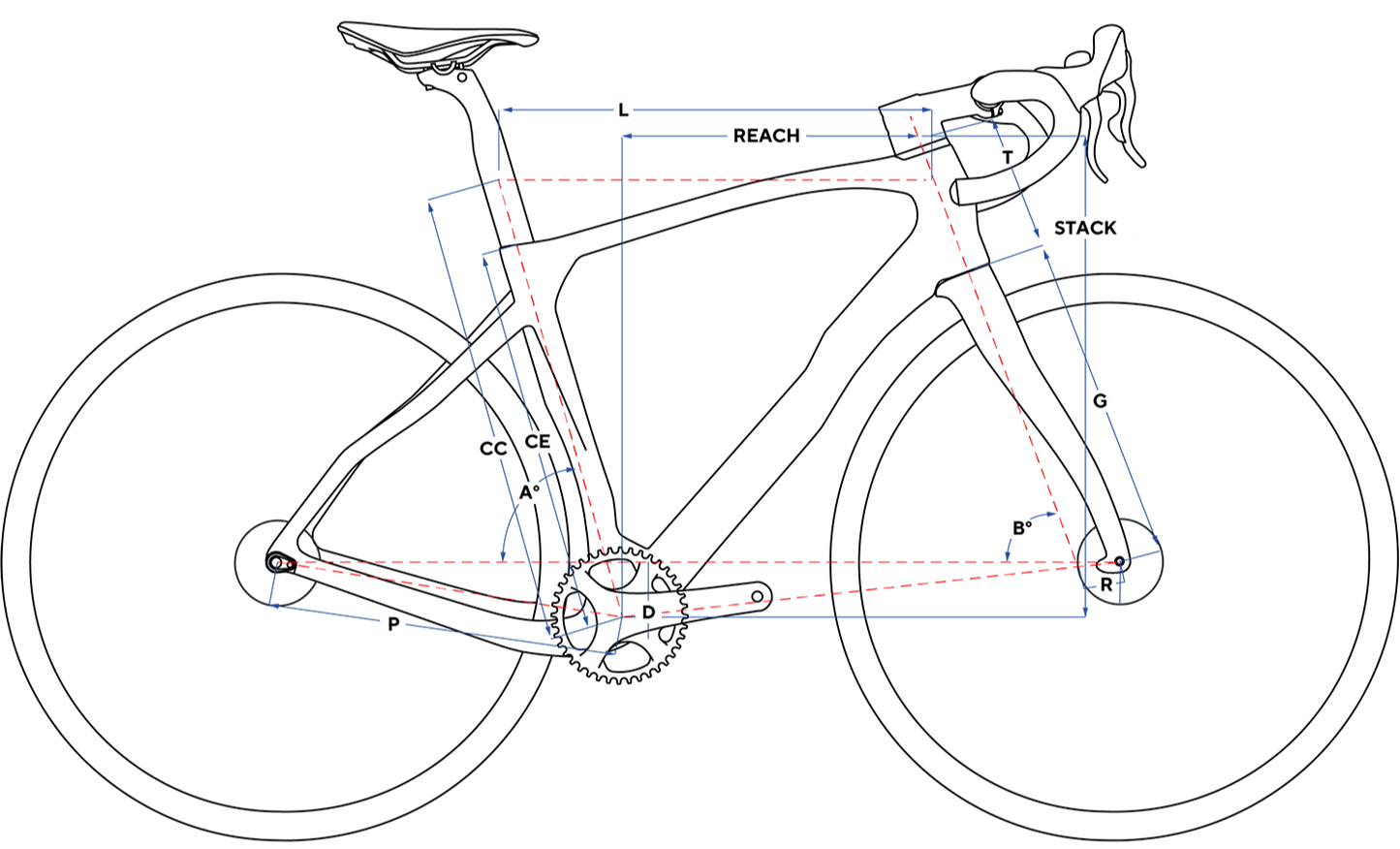

GEOMETRIES
CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
---|---|---|---|---|---|---|---|---|---|---|---|
410 | 470 | 520 | 74.5 | 70.25 | 422 | 120 | 72 | 55 | 395 | 360.1 | 548.4 |
445 | 500 | 535 | 74 | 70.5 | 422 | 135 | 72 | 55 | 395 | 367.8 | 563.5 |
475 | 530 | 547 | 73.75 | 70.75 | 422 | 155 | 67 | 55 | 395 | 374.4 | 578.4 |
500 | 550 | 560 | 73.5 | 71.75 | 425 | 165 | 67 | 50 | 395 | 382 | 593.5 |
520 | 575 | 577 | 73 | 72 | 425 | 180 | 67 | 50 | 395 | 389.7 | 608.8 |
550 | 600 | 597 | 72.5 | 72.25 | 425 | 200 | 67 | 50 | 395 | 398.5 | 628.8 |
